YJ-GLA1.5

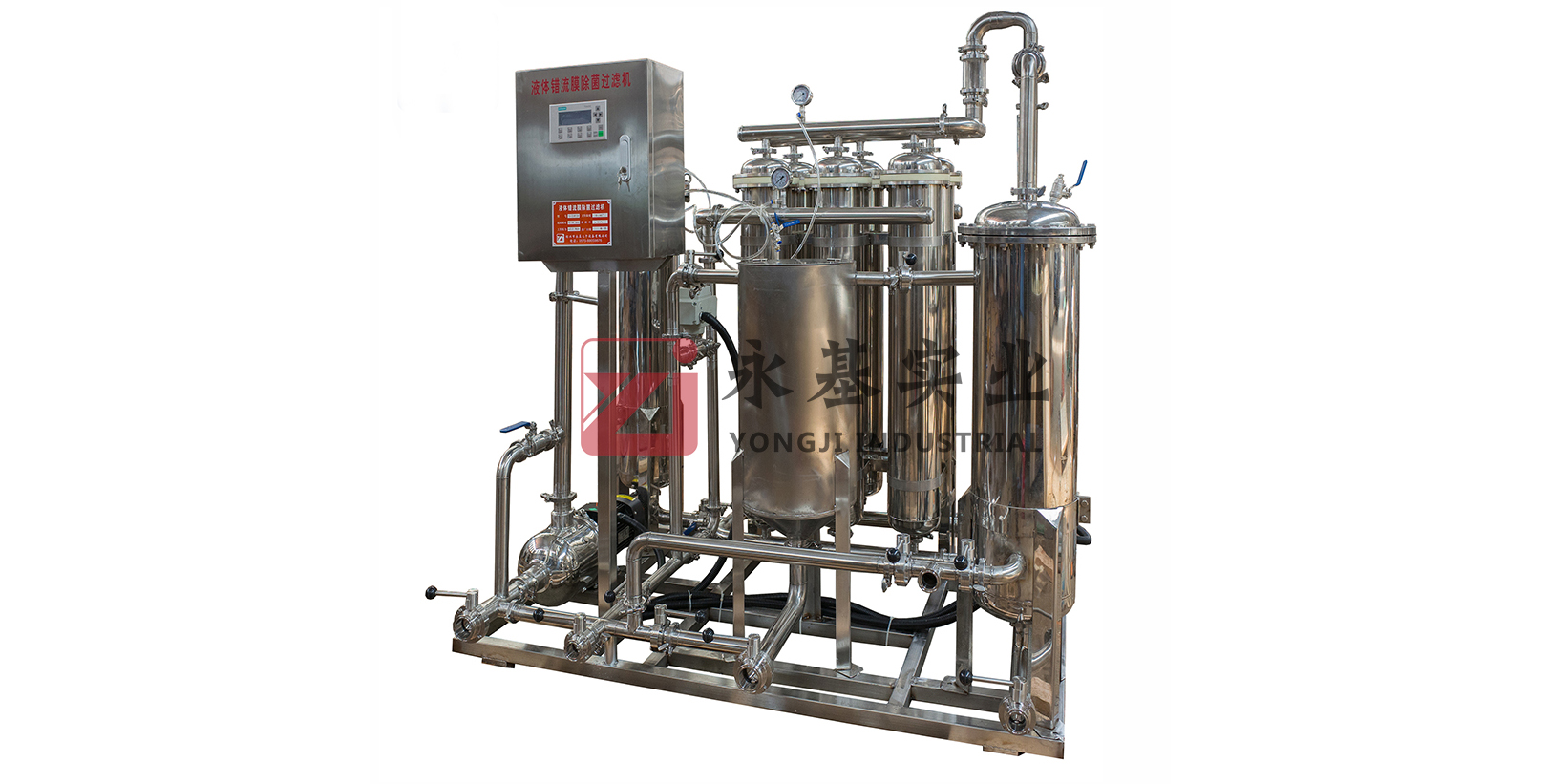

Product Introduction: This Membrane Filtration equipment, with PLC as the core of its automated control module, operates automatically and is equipped with CIP (Clean-In-Place) functionality. It features a three-stage filtration process: Bag Filtration Pre-treatment → Hollow Fiber Membrane Cross-Flow Filtration → Pleated Membrane Fine Filtration.
Applications: The system is applicable in various fields such as alcoholic beverages, soft drinks, pharmaceutical intermediates, food additives, soy sauce and vinegar, fruit juices, tea beverages, and chemical industries.
Features
1. The entire machine has a simple structure with minimal liquor storage.
2. It is easy to operate and maintain, has low operating costs, and is mobile for work.
3. The filter elements are detachable, making it convenient to remove and clean the filters.
| Specifications | Value |
|---|---|
| Designed Flow Rate | 1.5T/H |
| Membrane Unit Model | YJ-M-68（Large Diameter Ultra-High Flux Type） |
| Membrane Consumables Cost per Ton | less than 0.42 USD (1USD = 7 CNY) |
| Filter Mesh Size | *0.18μm（0.02-0.2μm Typical Value） |
| Operating Pressure | 0.05-0.2Mpa |
| Backwash Pressure | 0.15-0.2Mpa |
| Operating Temperature | 0-45℃ |
| Operating pH | 1-14 |
| Control System | PLC（Customizable Functions） |
| Power Configuration | 3.15Kw |
| Power Supply Configuration： | 3-phase, 4-core |
| Material： | SUS304、SUS316L |
| Complete Set of Machine Parts | Membrane parts, No. 2 Bag Filter, Pleated Membrane Filter, Brand Centrifugal Pump, Cleaning Tank, Pneumatic Valve, Vibration-proof Pressure Gauge, Pressure Regulating Valve, Quick Connector, Operation Manual, etc |
