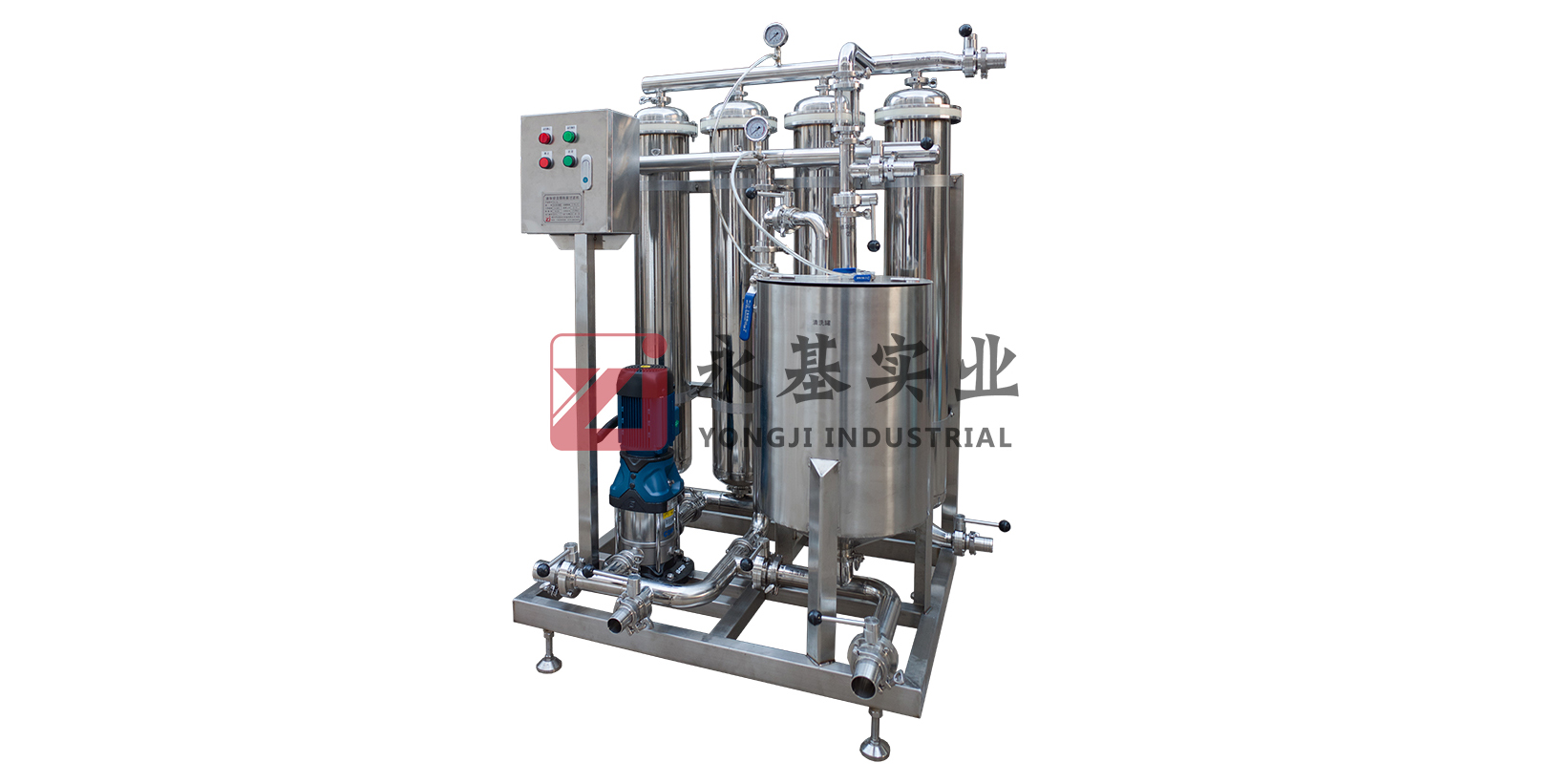

YJ-GLM4-C
This Model is suitable for: single-time filtration workloads of less than 10 tons. It comes equipped with a circulation and cleaning tank.
Applications: The system is applicable in various fields such as alcoholic beverages, soft drinks, pharmaceutical intermediates, food additives, soy sauce and vinegar, fruit juices, tea beverages, and chemical industries.
Features
1. The entire machine has a simple structure with minimal liquor storage.
2. It is easy to operate and maintain, has low operating costs, and is mobile for work.
3. The filter elements are detachable, making it convenient to remove and clean the filters.
Specifications | Value |
---|---|
Designed Flow Rate | 1.2T/H |
Membrane Unit Model | YJ-M-68(Large Diameter Ultra-High Flux Type) |
Membrane Consumables Cost per Ton | less than 0.42 USD (1USD = 7 CNY) |
Filter Mesh Size | *0.18μm(0.02-0.2μm Typical Value) |
Operating Pressure | 0.05-0.2Mpa |
Backwash Pressure | 0.15-0.2Mpa |
Operating Temperature | 0-45℃ |
Operating pH | 1-14 |
Control System | Manual |
Power Configuration | 0.75Kw |
Power Supply Configuration: | 3-phase, 4-core |
Material: | SUS304、SUS316L |
Complete Set of Machine Parts | Membrane parts, Brand centrifugal pump, Cleaning tank, Vibration-resistant pressure gauge, Pressure regulating valve, Quick connectors, Silicone tubes, Switch plugs, Operation manual, etc. |
